The PSU Status page displays details of the current status of the PSU and its outputs in addition to the status of any connected batteries.
The following PSU types are supported:
SPCP332/333 Smart PSU Status

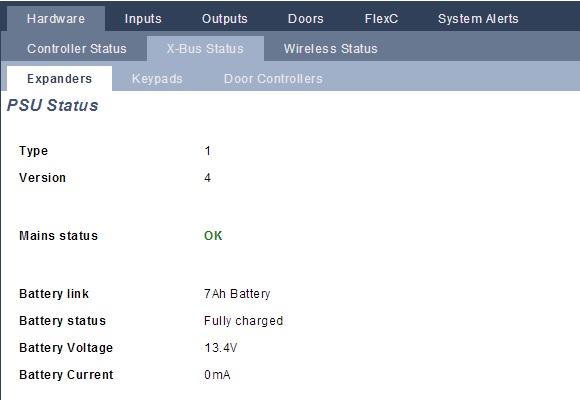

The following image shows the Smart PSU status:
|
Name |
Description |
|---|---|
|
Type |
The type of power supply unit (PSU). |
|
Version |
The version of the PSU. |
|
Mains Status |
Displays the condition of the mains connection. Possible values are Fault or OK. |
|
Battery Link |
Displays the type of battery connected. |
|
Battery Status |
Displays the condition of the battery connection. Possible values are Fault or OK. |
|
Battery Voltage |
Displays the voltage reading of the battery. |
|
Battery Current |
Displays the current taken from the battery. |
|
Outputs |
Displays the voltage on the outputs, the current drawn by the output and the condition of the fuse on the output. |
SPCP355.300 Smart PSU Status

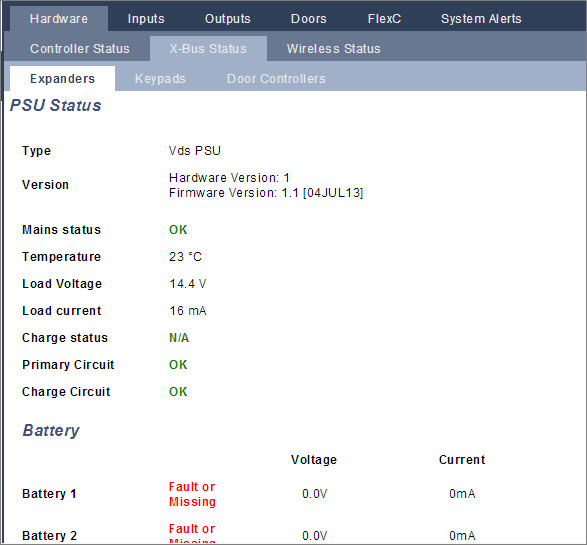

The following image shows the SPCP355.300 Smart PSU status.
|
Name |
Description |
|---|---|
|
Type |
The type of power supply unit (PSU). |
|
Version |
The version of the PSU. |
|
Mains Status |
Displays the condition of the mains connection. Possible values are Fault or OK. |
|
Temperature |
Displays the temperature of the PSU. |
|
Load voltage |
The voltage on the PSU |
|
Load Current |
The current drawn by the PSU. |
|
Charge Status |
Displays the condition of the battery charge. |
|
Primary Circuit |
Displays the condition of the primary circuit which supplies power when the mains is connected. |
|
Charge Circuit |
Displays the condition of the charge circuit which charges the batteries when the mains is connected. |
|
Battery |
Displays the charge status, voltage and current available from the batteries. |
|
Outputs |
Displays the voltage, fuse condition and tamper condition of the PSU outputs. |
