Expanders

  1. Select Configuration > Hardware > X-Bus > Expanders.



    For naming and identifying:

    In loop configuration, each expander is numbered consecutively from the first (expander connected to the 1A 1B on the controller) to the last (expander connected to the 2A 2B on the controller).

    Example for SPC63xx: Expanders, when numbered 1 through 63, are allocated zones (in groupings of 8) in subsequent identities of 1 to 512 (the greatest number in zone identification is 512). Therefore, any expander named or identified by a number greater than 63 has no allocated zones.

  2. Click one of the expander identifying parameters to display the Expander Configuration page.

  3. Configure the following fields:

    Description

    For appearance on device LEDs.

    Volume Limit

    Audio Expander Only: Speaker volume for the Audio Expander and satellites (WAC 11). They are all wired in parallel. Note that the speaker on WAC 11 has a potentiometer for fine-tuning the volume. Range is 0 min – 7 max or disabled.

    Auxillary Channnel

    Audio Expander Only: This option should be enabled if satellites (WAC11) are connected to this expander.

    Note: This option, if enabled, powers the satellite microphones. The satellite speakers are always enabled regardless of this setting.

    End Of Line

    Select the correct End of Line (default: DEOL 4K7). This setting should match the actual wiring of the input on the controller or expander. See Wiring the system.

    (Zone) Description

    Provide a description for allocated zone.

    (Zone) Type

    Select the zone type. See Zone attributes.

    Area

    Select the area.

    Attributes

    Assign attributes as desired. See Zone types.

    Outputs/PSU outputs (Displayed for the SPCP355.300 Smart PSU ONLY)

    Output

    The numbered output. The value in parentheses corresponds to the physical output on the PSU board.

    Description

    Provide description for output.

    Change type

    Change the type of output as necessary.

    Attributes

    Assign attributes to the output.

    Test

    Test the output.

    Output monitor

    Select which outputs are to be monitored.

    Note: The parallel resistor, diode and required load must be applied before enabling this option. The SPCP355.300 must perform a calibration before monitoring starts. See Supervised Outputs for more information.

    Primary battery only

    Tick this box if there is no secondary battery connected to the PSU

When expanders are added or removed go to Configuration > Hardware > X-BUS > Cable Map & Configuration.

Click Reconfigure to implement changes.

  When you click Proceed Reconfiguration, the whole X-BUS is reconfigured. If an expander is offline and the reconfigure button is pressed, the expander will disappear without notifying the user.
Reconfiguring the X-BUS

  1. Select Configuration > Hardware > X-BUS > Cable Map & Configuration.

  2. Click Reconfigure.

    The X-Bus cable Map – Warning(s) page displays.

  3. Click Proceed Reconfiguration.

    The X-BUS is reconfigured.

    If an expander is offline and the reconfigure button is pressed, the expander will disappear without notifying the user.

See also

Wiring the system

Zone attributes

Zone types

Configuring an Indicator Expander

There are 2 possible configuration modes for the indication expander:

  1. Select Configuration > Hardware > X-Bus > Expanders.

  2. Click one of the indicator identifying parameters.

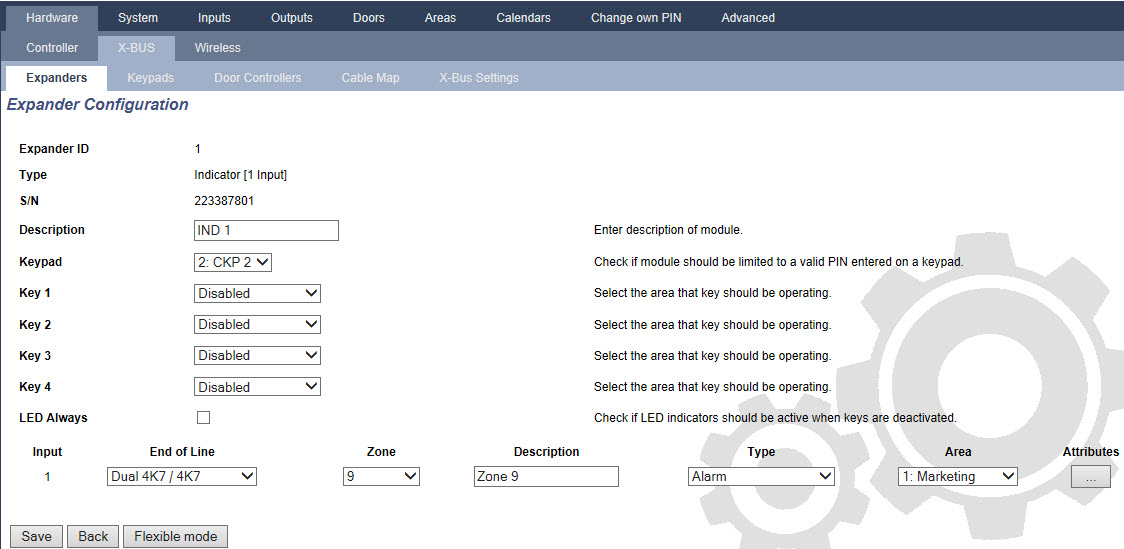

    The following page is displayed for Linked Mode configuration.

Linked Mode

  1. Enter a description.
  2. Select if indicator module should be limited to a valid code entered on a keypad.
  3. Select the areas that are to be controlled by the 4 functions keys.
  4. Configure the input.

Flexible Mode

  1. Click the Flexible Mode button.

  2. Configure the fields described in the table below.

    Function Keys

    Area

    Select the area is to be controlled by the function key.

    Function

    Select the function to be performed by this key in this area.

    Area

    Select an area if the indicator module is located in a secure area.
    Visual Indication

    Indicator

    There are 8 indicators/LEDs on the right and 8 indicators/LEDs on the left side.

    Function

    The function that is indicated by this LED.

    Function On

    Select the colour and the state for every indicator if the selected function is ON.

    Function Off

    Select the colour and the state for every indicator if the selected function is OFF.

    Change function

    Click this button to change the function for this indicator. The function can be enabled or used for a system, area, zone or keyswitch.
    Audible Indications

    Alarms

    Select if the alarms should be audible.

    Entry/Exit

    Select if entry/exit should be audible.

    Key press

    Select if keypress should be audible.
    Deactivation

    Calendar

    Select if indicator expander should be limited by calendar.

    Mapping gate

    Select if indicator module should be limited by a mapping gate.

    Keyswitch

    Select if indication module should be limited by a keyswitch.

    Keypad

    Select if indicator module should be limited to a valid PIN entered on a keypad. (see warning above)

    Card reader

    Select if indicator module should not be activated until a valid card/fob is presented to the built-in card reader.
  3. Configure the input.
  WARNING: Your system will not comply with EN standards if you enable a function key to set the system without a valid PIN being required.



Configuring a Keyswitch Expander
  1. Select Settings > X-Bus > Expanders.

  2. Click one of the keyswitch identifying parameters.

  3. Configure the fields described in the tables below.

    Description

    Enter a description for the keyswitch expander.
    Key Options

    Latch

    Select if key position should be latched.

    Latch timer

    Enter duration of latch in seconds (0–9999, 0 means latch lasts until key is turned the other way).
    Areas

    Location

    Select the area where the keyswitch is located.
    Visual Indications

    Indicator/LED

    There is 1 indicator/LED on the right and 1 indicator/LED on the left side.

    Function

    The function for this indicator/LED.

    Function On

    Select the colour and the state for every indicator if the selected function is ON.

    Function Off

    Select the colour and the state for every indicator if the selected function is OFF.

    Change function

    Click this button to change the function for this indicator. The function can be enabled or used for a system, area, zone or keyswitch.
    Deactivation

    Calendar

    Select if the keyswitch module should be limited by calendar.

    Mapping gate

    Select if the keyswitch module should be limited by a mapping gate.
    Output

    Output x

    Configure and text the outputs for the keyswitch. See Editing an output for more details.
    Keyswitch Functions

    Centre, Right and Left Positions

    Select the Function that that this keyswitch position will perform and the relevant Area.

    Keyswitch functions are:

    • None
    • Unset
    • Partset A
    • Partset B
    • Fullset
    • Toggle Unset / Fullset
    • Toggle Unset / Partset A
    • Toggle Unset / Partset B
    • All Okay
    • Setting authorisation
    • Shunt



  WARNING: Your system will not comply with EN standards if you enable a keyswitch function to set the system without a valid PIN being required.
